The Leupold VX-Freedom Muzzleloader 3-9×40 (Leupold part #174184) is a 3-9x40mm riflescope with a 1″ main tube and the UltimateSlam reticle in the second (rear) focal plane. The VX-Freedom is Leupold’s best-value hunting line, with a 3x zoom range and Leupold’s Twilight Light Management System.
Key Features
- 3-9x magnification (3x zoom range) with a 40mm objective
- Second focal plane reticle: stays the same size and easy to see as you zoom
- Waterproof and fogproof, backed by Leupold’s lifetime guarantee

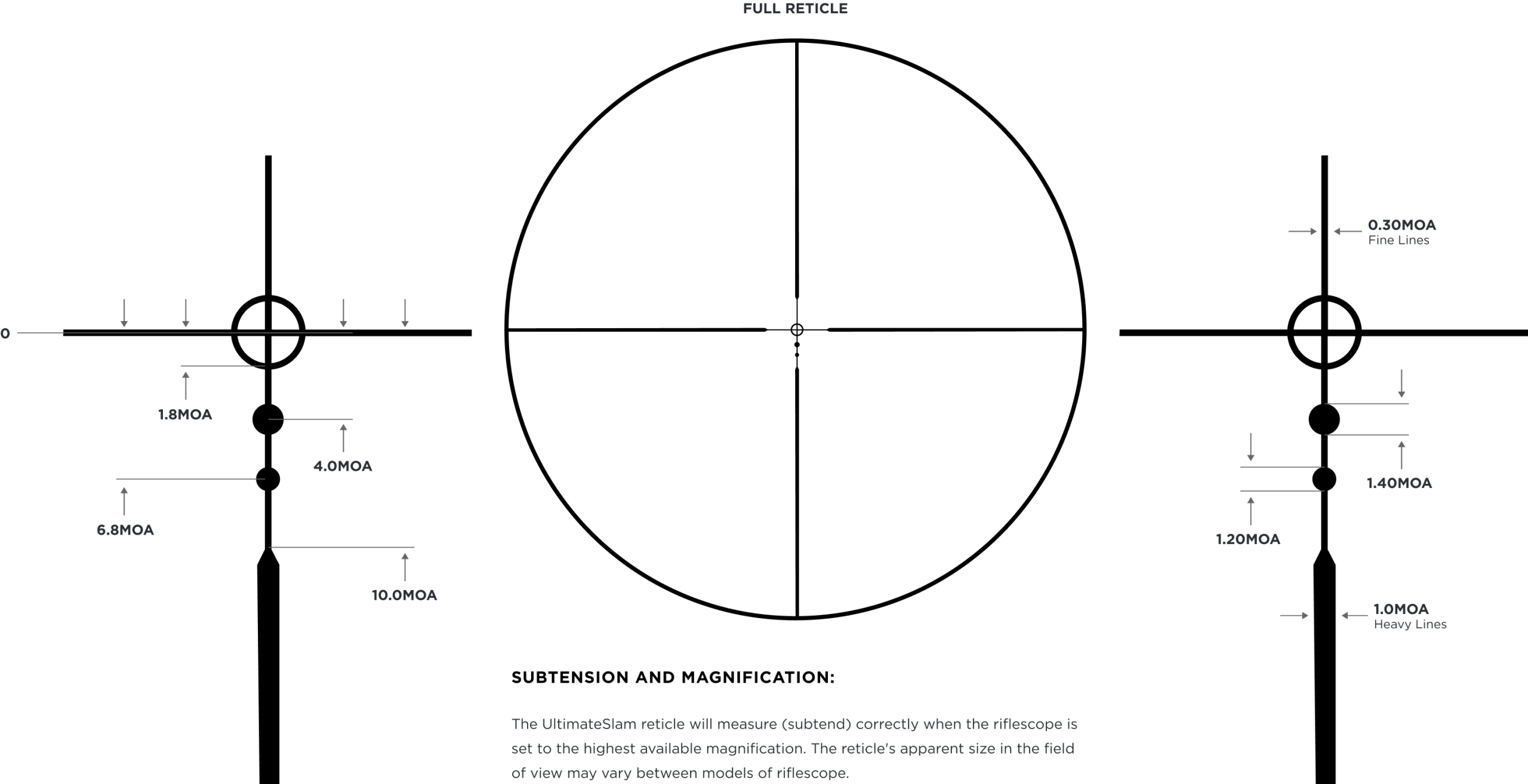

UltimateSlam Reticle
The UltimateSlam is a Duplex-based reticle made for muzzleloaders and slug guns. With a 100-yard zero it gives aiming points out to 300 yards, and marks on the power ring let you tune the holds to your load. See the reticle diagram in the product photos.
Specifications
| Magnification | 3-9x |
| Objective lens | 40mm |
| Main tube | 1″ |
| Focal plane | Second (SFP) |
| Reticle | UltimateSlam |
| Click value | 1/4 MOA |
| Elevation adjustment | 60 MOA / 17 MIL |
| Windage adjustment | 60 MOA / 17 MIL |
| Adjustment per turn | 15 MOA |
| Field of view | 33.1–13.6 ft @ 100 yd |
| Eye relief | 4.2–3.7 in |
| Length | 12.49 in |
| Weight | 12.2 oz |
| Finish | Matte Black |
| Leupold part number | 174184 |
| UPC | 030317018764 |
FAQ
What size scope rings does this scope need?
It has a 1″ main tube, so you need 1″ rings. A good match is the Leupold BackCountry Cross-Slot 1″ Medium Rings, or browse all scope rings.
What does second focal plane (SFP) mean?
The reticle sits behind the magnification lenses, so it stays the same size as you zoom. It stays bold and easy to see at low power, which is why most hunting scopes use it.
Buy at Black Bayou Armory
Order the Leupold VX-Freedom Muzzleloader 3-9×40 online for free in-store pickup at Black Bayou Armory in Benton, Louisiana, serving Bossier City, Shreveport and the ArkLaTex. Shop more Leupold optics.
