The Leupold Mark 4HD 1-4.5×24 (Leupold part #183314) is a 1-4.5x24mm riflescope with a 30mm main tube and the HPR-1 reticle in the second (rear) focal plane. The Mark 4HD is Leupold’s precision and tactical line, built for fast, repeatable dialing with Leupold’s HD optics.
Key Features
- 1-4.5x magnification (4.5x zoom range) with a 24mm objective
- Second focal plane reticle: stays the same size and easy to see as you zoom
- M1C3 elevation turret with a locking dial to prevent accidental adjustments
- Easy rezero after sighting in
- Waterproof and fogproof, backed by Leupold’s lifetime guarantee
HPR-1 Reticle

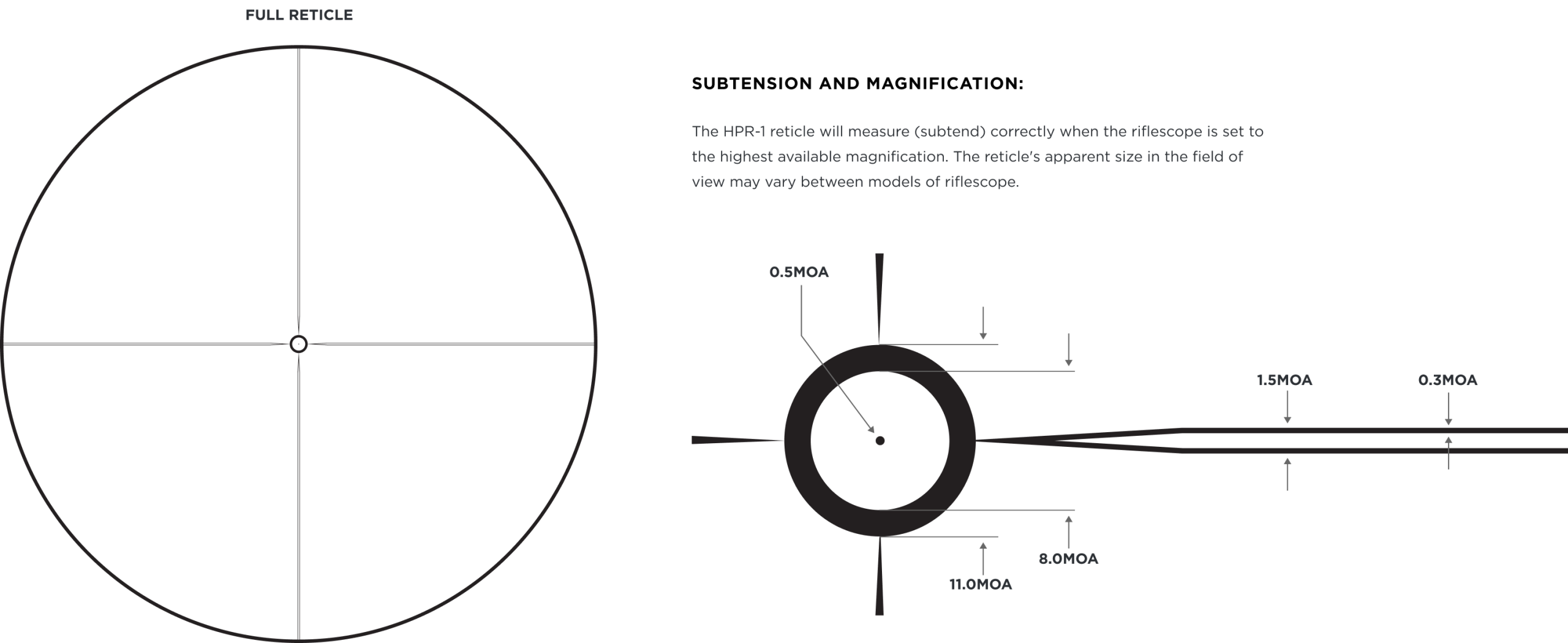

The HPR-1 is designed for CMP-style competition. It has a 0.5 MOA center dot inside an 8 MOA inner and 11 MOA outer circle for bracketing targets, with tapered posts that draw your eye to the center. See the reticle diagram in the product photos.
Specifications
| Magnification | 1-4.5x |
| Objective lens | 24mm |
| Main tube | 30mm |
| Focal plane | Second (SFP) |
| Reticle | HPR-1 |
| Elevation turret | M1C3 |
| Click value | 1/4 MOA |
| Elevation adjustment | 165 MOA / 48 MIL |
| Windage adjustment | 165 MOA / 48 MIL |
| Adjustment per turn | 25 MOA |
| Field of view | 118.8–25.2 ft @ 100 yd |
| Eye relief | 3.7–3.9 in |
| Length | 10.7 in |
| Weight | 18 oz |
| Finish | Matte Black |
| Leupold part number | 183314 |
| UPC | 030317036331 |
FAQ
What size scope rings does this scope need?
It has a 30mm main tube, so you need 30mm rings. A good match is the Leupold BackCountry Cross-Slot 30mm Medium Rings, or browse all scope rings.
What does second focal plane (SFP) mean?
The reticle sits behind the magnification lenses, so it stays the same size as you zoom. It stays bold and easy to see at low power, which is why most hunting scopes use it.
Buy at Black Bayou Armory
Order the Leupold Mark 4HD 1-4.5×24 online for free in-store pickup at Black Bayou Armory in Benton, Louisiana, serving Bossier City, Shreveport and the ArkLaTex. Shop more Leupold optics.
